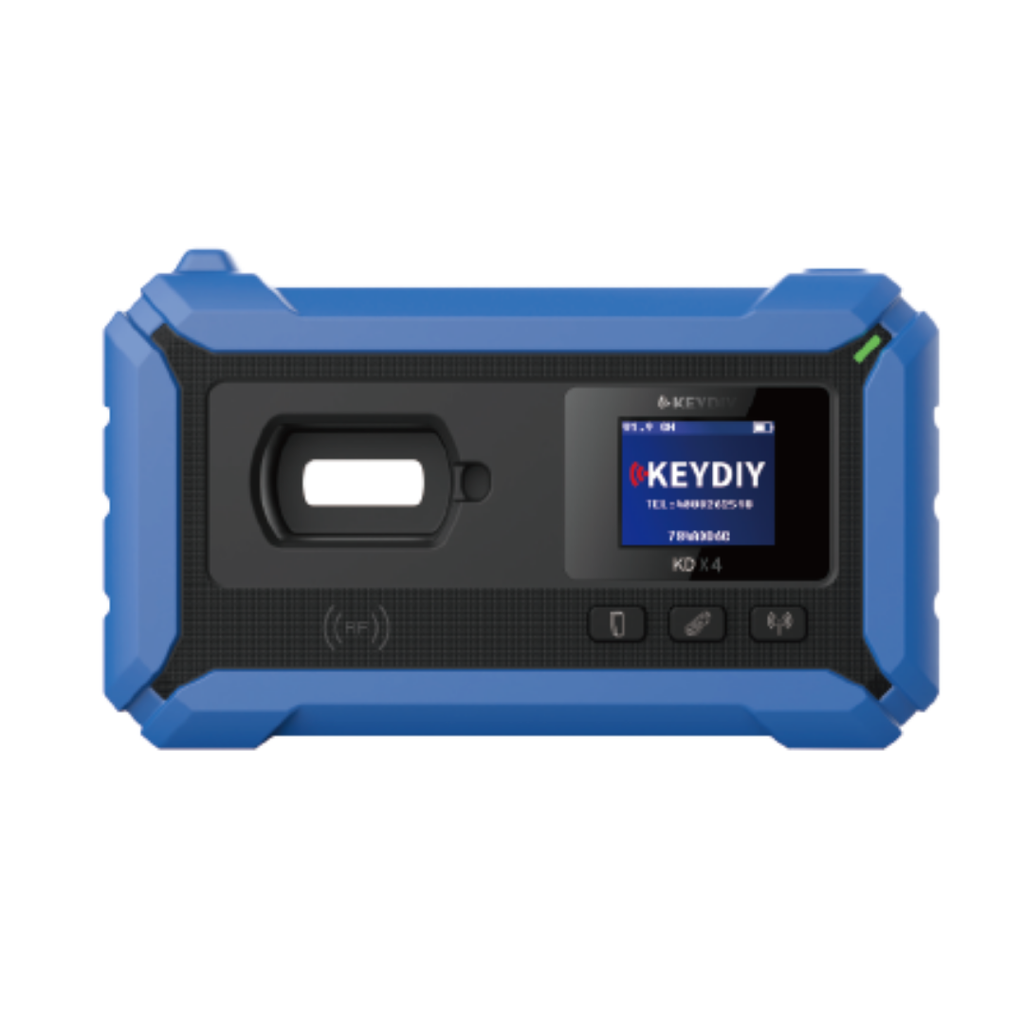

KEYDIY KD-X4
Universal Locksmith Tool
Professional device integrating recognition, generation, copying, programming and pairing
Details
The KEYDIY KD-X4 (product no. MK25304) is a professional locksmith device that integrates recognition, generation, copying, programming, and pairing. It can be operated independently or connected to tablets, mobile phones, and PC software across multiple free modes, so locksmiths can choose whichever mode best suits their workflow.
It supports frequency detection (2.4G compatible), remote generation, remote simulation, keyless remote simulation, remote copying, chip recognition/copying, chip generation, chip acquisition, key unlocking, immobiliser programming, programmer data read/write, online updates, and more — a professional tool with simple operation, stable performance, and wide vehicle model coverage.
Key features
- Industry-first UWB (Bluetooth) key detection
- Industry-exclusive free programming to unlock used Toyota keys
- First to launch MLB chip detection
- Integrated CAN FD — no additional accessories required
- Programming for Chinese 24 V heavy-duty truck models
- Built-in programmer function; supports the 5A mileage (odometer) function
- One-second startup greatly improves the locksmith's efficiency
- Generates 5,000+ remotes across 56 vehicle brands
- Recognises up to 21 chip types, including MLB chips
- Supports 19 languages, including Arabic, Korean, German, Spanish, English, and Chinese
- Very easy-to-use interface
- A wiring harness can cancel the Ford alarm and program the Toyota 8A blade key in all-keys-lost situations (sold separately)
Technical specifications
- Product number: MK25304
- Weight: 1,500 g
- Battery: 3.7 V, 2,000 mAh
- Input power: 5 V / 9 V / 12 V, 2 A
- Size: 150 × 85 × 30 mm
- Display: 2.8-inch colour screen
- Connectivity: BLE, USB 2.0 (Type B)
- Operating temperature: -10 °C to 50 °C
- Storage temperature: -20 °C to 60 °C
Included in the box
- KD-X4 device
- Main OBD cable
- USB cable
- Toyota adapter cable
- Programmer adapter board
- Programmer wiring cable
- Remote burn/write cable
- Key unlock cable
- External acquisition antenna
- Carrying case
![[KD-X2] EQUIPAMENTO KD-X2 PARA CLONAGEM DE TRANSPONDERS E GERAÇÃO DE COMANDOS](https://eu.key-code.com/hs-fs/hubfs/%5BKD-X2%5D%20EQUIPAMENTO%20KD-X2%20PARA%20CLONAGEM%20DE%20TRANSPONDERS%20E%20GERA%C3%87%C3%83O%20DE%20COMANDOS.jpg?width=400&height=400&name=%5BKD-X2%5D%20EQUIPAMENTO%20KD-X2%20PARA%20CLONAGEM%20DE%20TRANSPONDERS%20E%20GERA%C3%87%C3%83O%20DE%20COMANDOS.jpg "[KD-X2] EQUIPAMENTO KD-X2 PARA CLONAGEM DE TRANSPONDERS E GERAÇÃO DE COMANDOS")

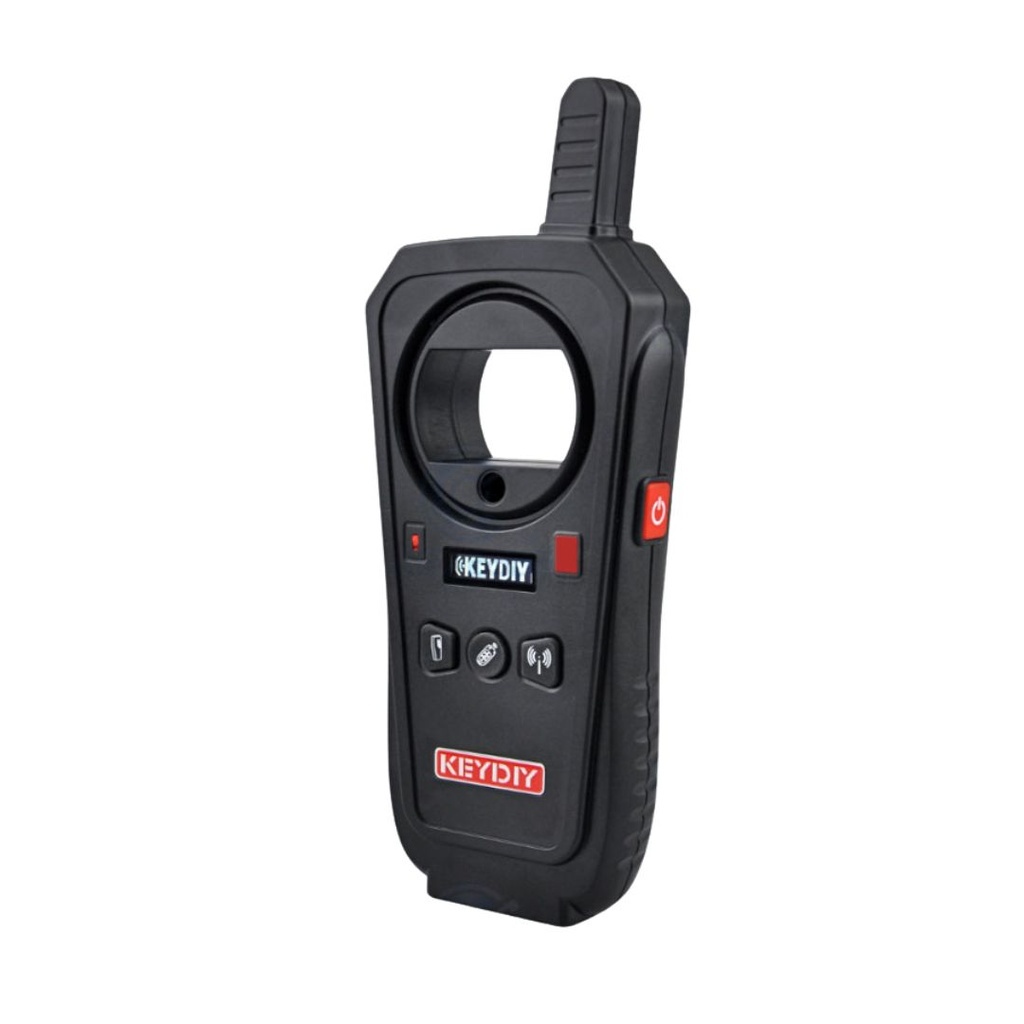

KEYDIY KD-X2
Remote Generator & Transponder Cloner
More than a cloner: copy, read/write transponders, frequency testing and key programming
Details
The KEYDIY KD-X2 (product no. MK8823) is more than a simple cloner: it can copy transponders, read and write to and from transponders, run a frequency test, and work alongside KEYDIY's key programming and ECU diagnostic tools.
Hardware highlights: 2,600 mAh lithium battery (USB 5 V / 1 A charging), 0.91-inch OLED display, built-in Bluetooth BLE 4.0 for the KD mobile app, PC software via USB-B and Android phone/tablet via OTG, a PS-2 interface to connect remotes for generation, and three shortcut buttons for chip identification, remote identification, and frequency detection.
Basic functions
- Wired generation
- Wireless generation
- Mobile phone simulation
- Garage door generation
- Proximity key unlocking
- Frequency detection
- Infrared detection
- Access card copying
- Fixed-code remote copying
- Online HCS remote copying
- Online chip copying (96-bit 48 chip, 46 chip, 4D chip, Toyota G chip, etc.)
- Chip generation
- Chip editing
- Chip simulation
- Ignition coil detection
- Remote data backup
- Additional functions to be released progressively
- Free activation of 96-bit 48 transponder copy
Transponder identification — reads and identifies:
- Fixed code: ID 11, 12, 13, 33 and 4C
- Philips Crypto: 40, 41, 42, 44, 45, 46, 47, 49 and 4A
- Megamos: 48, 48 CAN BUS
- Texas Crypto: 60–72, 82, 83, 8C and 8E
- Most smart keys
Cloning — with built-in snoop for ID46 and ID48; clones keys for:
- 4D / 4C / 46 / 11 / 12 / 13 / 33 transponder clone
- ID48 (96-bit) only
- Fixed code (T5): ID 11, 12, 13 and 33 with a T5 carbon chip
- Texas TX 4C
- Texas Crypto TX/CR 4D
- Philips Crypto PH/CR 46
- Toyota 80-bit
- Megamos Crypto
Technical specifications
- Product number: MK8823
- Weight: 850 g
- Battery: 2,600 mAh lithium
- Charging: USB 5 V / 1 A
- Display: 0.91-inch OLED
- Connectivity: Bluetooth BLE 4.0, USB-B, OTG, PS-2
- Manufacturer: KEYDIY
Included in the box
- KEYDIY KD-X2 main unit
- PC data cable
- 3 common remotes
- Remote data cable
- Spare remote data cable
![[KD-X2] EQUIPAMENTO KD-X2 PARA CLONAGEM DE TRANSPONDERS E GERAÇÃO DE COMANDOS](https://eu.key-code.com/hubfs/%5BKD-X2%5D%20EQUIPAMENTO%20KD-X2%20PARA%20CLONAGEM%20DE%20TRANSPONDERS%20E%20GERA%C3%87%C3%83O%20DE%20COMANDOS.jpg "[KD-X2] EQUIPAMENTO KD-X2 PARA CLONAGEM DE TRANSPONDERS E GERAÇÃO DE COMANDOS")
![[KD-MAX] EQUIPAMENTO KD MAX PARA CLONAGEM DE TRANSPONDERS E GERAÇÃO DE COMANDOS](https://eu.key-code.com/hs-fs/hubfs/%5BKD-MAX%5D%20EQUIPAMENTO%20KD%20MAX%20PARA%20CLONAGEM%20DE%20TRANSPONDERS%20E%20GERA%C3%87%C3%83O%20DE%20COMANDOS.jpg?width=500&height=500&name=%5BKD-MAX%5D%20EQUIPAMENTO%20KD%20MAX%20PARA%20CLONAGEM%20DE%20TRANSPONDERS%20E%20GERA%C3%87%C3%83O%20DE%20COMANDOS.jpg "[KD-MAX] EQUIPAMENTO KD MAX PARA CLONAGEM DE TRANSPONDERS E GERAÇÃO DE COMANDOS")

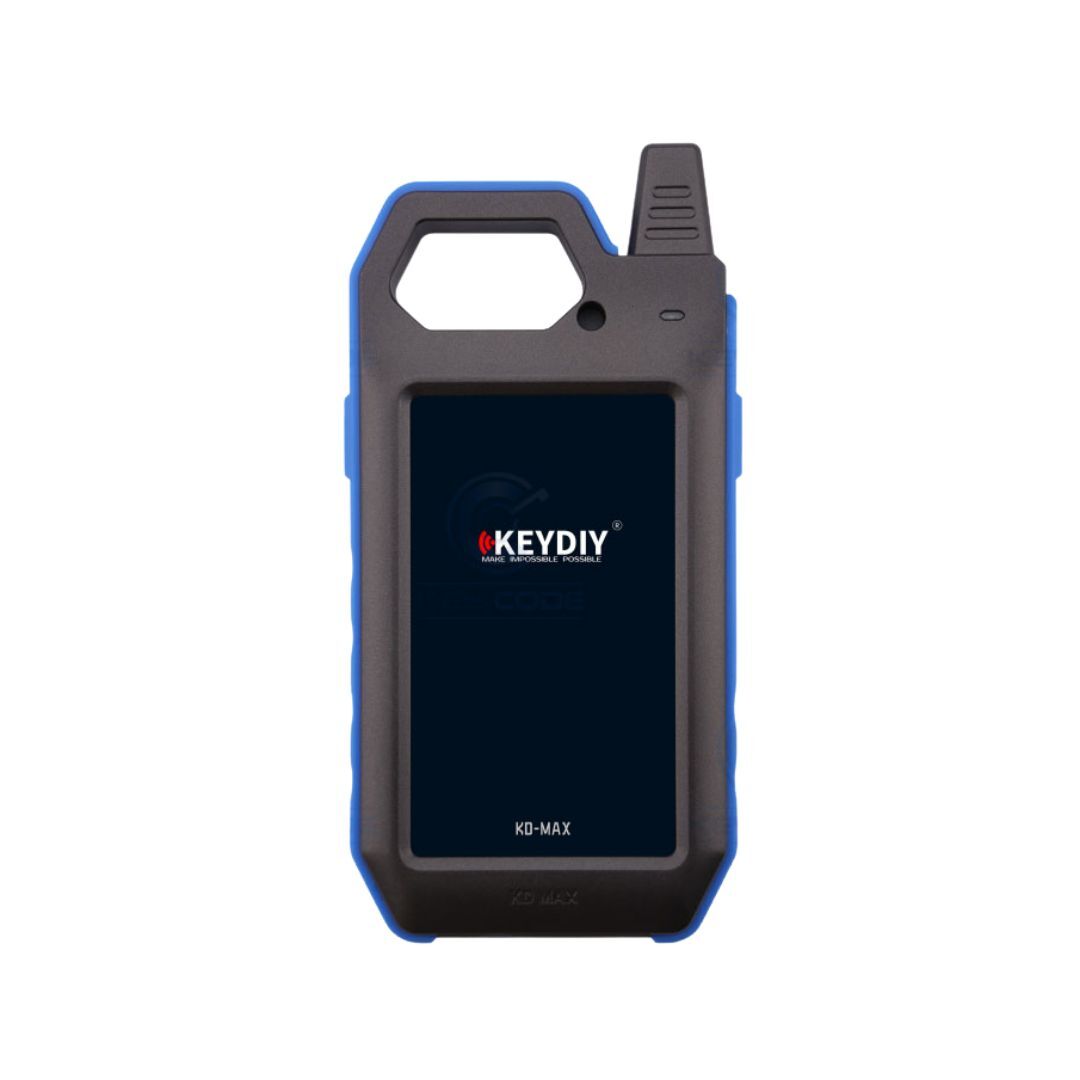

KEYDIY KD Max
Smart Key Tool & Remote Generator
Professional multifunction Android device with Bluetooth, Wi-Fi and a 5" screen
Details
The KEYDIY KD Max (product no. MK9000) is a professional multifunction smart device. It runs on Android with a clean, easy-to-use interface and comes with a built-in Bluetooth and Wi-Fi module and a 5-inch LCD screen.
Its functions include frequency detection, remote generation, remote cloning, chip recognition, chip editing, chip decoding, chip cloning, chip generation, chip data acquisition, car remote unlocking, IC/ID cloning and generation, online programming, battery voltage detection, battery leakage detection, and Wi-Fi updates.
Features
- Automotive remote generation
- Garage remote clone/generation
- Remote cloning
- Chip recognition / editing / decoding / cloning + dedicated chip generation
- Car key remote unlocking with battery leakage detection
- IC/ID card recognition and clone frequency check
- Battery voltage detection
Technical specifications
- Product number: MK9000
- Weight: 700 g
- Battery: 3,375 mAh
- Standby time: 7 days
- Normal operating time: ~8 hours
- Charging current: 1,500 mA
- Brightness: 400 nits
- Screen resolution: 1,280 × 720 p
- Display: 5-inch LCD
- Connectivity: Bluetooth, Wi-Fi
- Manufacturer: KEYDIY
